MBPROG programmer is technologically advanced universal processor programmer. Advanced technology used in production of MBPROG allows us to continuously develop new supported systems. The use of advanced technologies allows to read processor in no more than 3 – 4 seconds.

MBProg

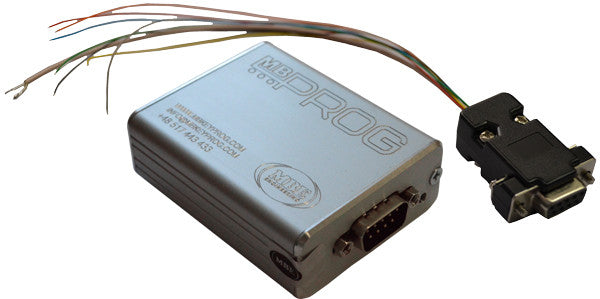

MBprog - Multi Prog programmer

$569.99

MBPROG programmer is technologically advanced universal processor programmer. Advanced technology used in production of MBPROG allows us to continuously develop new supported systems. The use of advanced technologies allows to read processor in no more than 3 – 4 seconds.

Features

Basic version of MBPROG works with processors: HC12, HCS12, HCS12X, HCS12XEP, HC08, HC908.
It allows to work with ignition locks (EIS/EZS) used in Mercedes-Benz vehicles (also secured 4J47Y and 1J35D in W203, W220, 2L52H and 1L52H in Sprinter). Software supports masks 2J74Y, 3K85K,0J66D,1H56A,1L87J

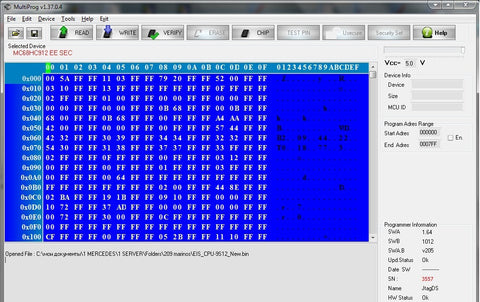

MBprog reads/writes both EEPROM and FLASH.
MBprog works with secured and unsecured processors and it does not need outside power supply.

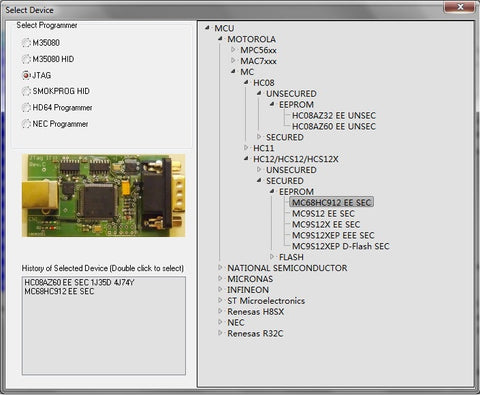

To work with MBPROG you can use supplied software and MicroClac.

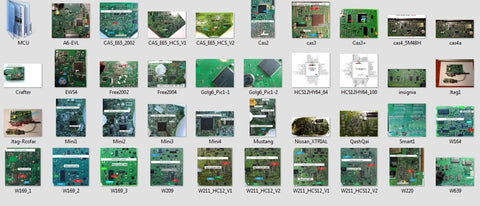

Manuals with pictures are installed with software (all needed diagrams how to connect and read processors in EZS, CAS and other modules).

Detailed list of covered processors with masks

Unsecured

EEprom

HC08AB16 EE (0L72A)
HC08AB32 EE (0L59X)
HC08AZ32 EE (0J66D)
HC08AZ60 EE (1J35D)
HC08AZ60 EE (2J74Y)
HC08AZ60 EE (4J74Y)
HC08AZ60A EE (3K85K)
HC08AZ60A EE (2M75J)
HC08AS60 EE (3J74Y)
HC08AZ60A EE (2M75J)
HC08AZ60 EE
HC08AZ60A EE
HC08AS60A EE

Secured

EEprom:
HC08AZ32A EE (2L52H)
HC08AZ32A EE (4L52H)
HC08AZ48A EE (0L02M)
HC08AZ48A EE (1L02M)
HC08AZ60 EE (1J35D)
HC08AZ60 EE (4J74Y)
HC08AZ60 EE
HC08AZ60A EE
HC08AS60A EE

Flash

HC08AB32
HC08AZ60
HC08AZ60A
HC08AS60A
HC08GR16

JG 0023

MC68HC908LJ12 Read Flash, Write Flash, Read Security Password
MC68HC908LJ24 Read Flash, Write Flash, Read Security Password
MC68HC908LK24 Read Flash, Write Flash, Read Security Password
MC68HC908AZ60,AS60,AZ32,AB32 Read Security Password
