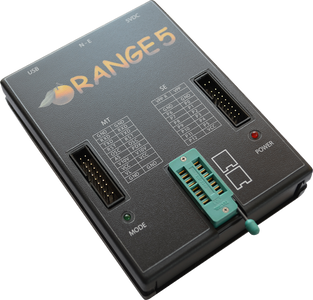

Orange5 is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro-language for writing down protocols, which gives fast and easy capability to add new types of micro-schemes, precisely meeting manufacturers' requirements to read/write algorithms. This set contains most of the popular adapters and is one of the most flexible EEPROM/ FLASH programmer, a powerful tool in your hands.
Download software installation (v 1.36)
Product contains hardware base only. No adapters or cables included.
Hardware was manufactured in USA.
Connection and power via USB interface (USB2.0)
Universal easy to plug panel ZIF16 for EEPROM
Control of contacts in the sockets
Two expansions connectors compatible with Orange4 and Omega MTRK
Protection against overcurrent
Overload voltage protection
Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
Three adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional fixed 10V for microcontrollers.
High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
Oscillator clock generator with frequency ( up to 24 Mhz) and out voltage (2.0...5.0V) adjustment.
Capability of functional emulation of USB CDC devices.
Built-in 32-bit virtual machine
Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter);
Maximum buffer size - 32Mb;
Users can create own HPL modules;
Edit 8 and 16 bits HEX values, as well as ASCII.
Read and write files in BIN, HEX, S19 formats;
Visual compare mode with highlight values;
Write all chip or marked area;
Support for multiple configuration files;
Extended set of operations on the buffer;
Works under Windows XP,WIN7,WIN8,WIN10 (32 bit and 64 bit).
MTRK Licence (Motorola)
