Remote Detector

TESTER OF REMOTE CONTROLS - MEASURE FREQUENCY OF SIGNAL IN RANGES OF 315, 433MHZ, 868MHZ, 915MHZ AND IR

Touch display TFT 2,8 inches - Pocket size and light weight, made ​​entirely in SMD technology.

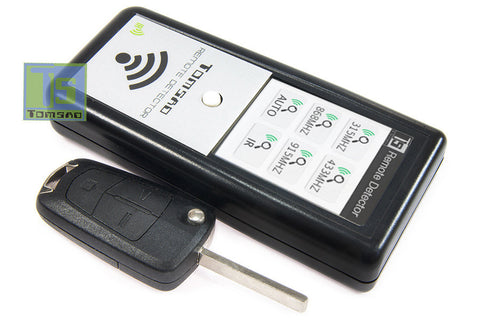

Simple use of tester - You need only touch remote control to detector and push a button

Aditional features of tester - Power read-out of remote control allows for example for checking battery status.

Technical features of remote detector

• Ability to measure the signal of four ranges of carrier frequencies:
• 315 MHz, 433 MHz, 868 MHz, 915 MHz
• Precision of measurement +/- 10 kHz
• Read out of remote controls' power enable for example verification of battery status.
• Measurement of IR align with brand's recognizition function
• 2.8’ TFT display equipped with resistance touch panel
• Compact size and light weight
• Made entirely with SMD technology

Remote detector's characteristics

• Power: bateria 9V (6F22 / 6LR61 / ER9V)
• Maximum current consumption: ok. 100 mA
• Dimensions: 70 mm X 140 mm
• Weight: ok. 145 g
• Working temperature range : 0°C - 70°C
• Humidity 0-95%
• Includes battery
